Clarity and comfort
Keep the outside world a key feature of your view while maintaining privacy and filtering out unnecessary sunlight with Visi. These finely woven sunscreens allow an unobscured view of the outside world and a comfortable atmosphere without any extra light and heat.
Clarity and comfort
Clarity and comfort
Keep the outside world a key feature of your view while maintaining privacy and filtering out unnecessary sunlight with Visi. These finely woven sunscreens allow an unobscured view of the outside world and a comfortable atmosphere without any extra light and heat.
Innovations
Reflect sunlight
Openness factor 5%
Widths
Product ref.
250 cm
200 cm
320 cm

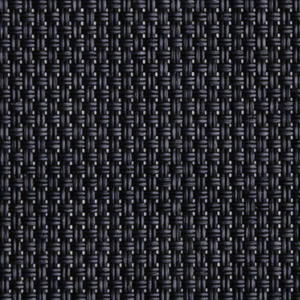

010010 - charcoal | charcoal
- Available
Certificates
To view the certificates, please login.
Technical info
General
Composition
Polyester with PVC coating
Openness factor
NBN EN 410
5.00%
Weight
NF EN 12127
415.00 g/m²
Thickness
ISO 5084
0.42 mm
Density
ISO 7211/2
Warp18.00 yarn/cm
Weft19.00 yarn/cm
Color fastness to artificial light
ISO 105 B02
>7
Roll length
30 m
Cleaning
With soapy water
Confection
By heat, high frequency or ultrasonic welding
Fire classification
└Europe
UNE-EN 13501-1:2007
B-s2,d0
└France
NF P92-503
M2
└Italy
UNI 9177
Class 1
└Germany
DIN 4102
└Spain
UNE 13773
Clase 1
Tear strength
ISO 4674-1 methode 2
└Original
Warp4.10 daN
Weft3.65 daN
└After climatic chamber -30°C
Warp3.95 daN
Weft3.80 daN
└After climatic chamber +70°C
Warp4.25 daN
Weft3.65 daN
Elongation up to break
ISO 1421
└Original
Warp23.50 %
Weft20.50 %
└After color fastness to artificial light
Warp23.00 %
Weft21.00 %
└After climatic chamber -30°C
Warp23.00 %
Weft20.00 %
└After climatic chamber +70°C
Warp24.00 %
Weft21.50 %
Breaking strength
ISO 1421
└Original
Warp165.00 daN/5cm
Weft155.00 daN/5cm
└After color fastness to artificial light
Warp160.00 daN/5cm
Weft160.00 daN/5cm
└After climatic chamber -30°C
Warp165.00 daN/5cm
Weft165.00 daN/5cm
└After climatic chamber +70°C
Warp165.00 daN/5cm
Weft165.00 daN/5cm
Front - Interior
Visual properties
Tv = Visual light transmittance
6.70%
Tuv = UV transmittance
6.50%
Solar energetic properties
As = Solar absorptance
84.70%
Rs = Solar reflectance
7.20%
Ts = Solar transmittance
8.10%
Fabric + glazing: G-factor
Glazing A
G 0.68
Te 0.07
Qi 0.61
SC 0.80
Glazing B
G 0.66
Te 0.06
Qi 0.61
SC 0.87
Glazing C
G 0.55
Te 0.04
Qi 0.51
SC 0.92
Glazing D
G 0.30
Te 0.02
Qi 0.28
SC 0.95
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 3
Good effect
Glare control
Class 1
Little effect
Privacy night
Class 1
Little effect
Visual contact with the outside
Class 3
Good effect
Daylight utilisation
Class 1
Little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Interior
Visual properties
Tv = Visual light transmittance
6.70%
Tuv = UV transmittance
6.50%
Solar energetic properties
As = Solar absorptance
84.60%
Rs = Solar reflectance
7.30%
Ts = Solar transmittance
8.10%
Fabric + glazing: G-factor
Glazing A
G 0.68
Te 0.07
Qi 0.61
SC 0.80
Glazing B
G 0.66
Te 0.06
Qi 0.60
SC 0.87
Glazing C
G 0.55
Te 0.04
Qi 0.50
SC 0.92
Glazing D
G 0.30
Te 0.02
Qi 0.28
SC 0.95
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 3
Good effect
Glare control
Class 1
Little effect
Privacy night
Class 1
Little effect
Visual contact with the outside
Class 3
Good effect
Daylight utilisation
Class 1
Little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
