Reflects sunlight outdoors
Out is an extremely durable, effective collection of exterior screens - woven with coated fiberglass yarns - making these screens ideal for outdoor use. Copaco offers a wide range of fabric and color options that ensure a perfect fit. Two new lines, made with the innovative Block fabrics, Lunar and Solar, provide perfectly blocking & transparency. Out screens are a decorative feature of countless home and offices around the world, giving energy savings and light transmission a new dimension.
Reflects sunlight outdoors
Reflects sunlight outdoors
Out is an extremely durable, effective collection of exterior screens - woven with coated fiberglass yarns - making these screens ideal for outdoor use. Copaco offers a wide range of fabric and color options that ensure a perfect fit. Two new lines, made with the innovative Block fabrics, Lunar and Solar, provide perfectly blocking & transparency. Out screens are a decorative feature of countless home and offices around the world, giving energy savings and light transmission a new dimension.
Widths
Product ref.
210 cm

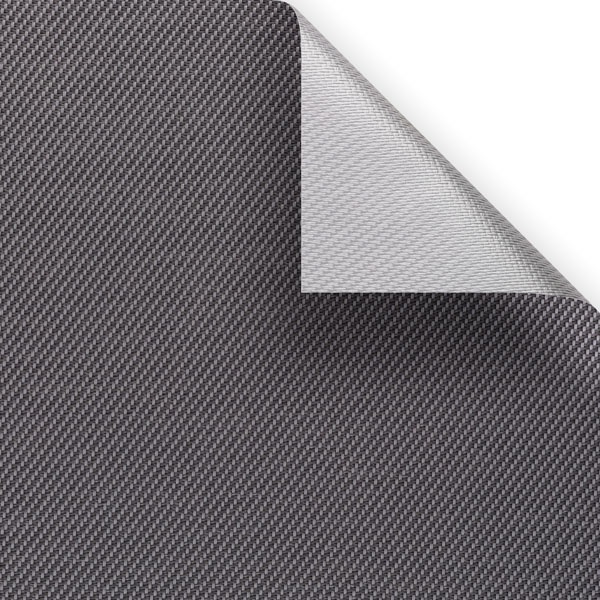

001010 - grey | charcoal
- Available
Recommendations
To be used in sunscreensystems with Zipscreens.
Technical info
General
Composition
Fibreglass 33% - PVC 47% - PVC laminate 20%
Openness factor
NBN EN 410
0.00%
Weight
NF EN 12127
678.00 g/m²
Thickness
ISO 5084
0.73 mm
Density
ISO 7211/2
Warp18.00 yarn/cm
Weft14.00 yarn/cm
Color fastness to artificial weathering
ISO 105 B04
>7
Air permeability
ISO 9237
0.0
Roll length
30 m
Cleaning
With soapy water
Confection
By heat, high frequency or ultrasonic welding
Fire classification
└Germany
DIN 4102
B1
└UK
BS 5867
awaiting test results
└USA
NFPA 701
awaiting test results
└France
NF P92-503
M1
└Italy
UNI 9177
Class 1
Tear strength
ISO 4674-1 methode 2
└Original
Warp8.50 daN
Weft9.00 daN
└After climatic chamber -30°C
Warp8.40 daN
Weft9.30 daN
└After climatic chamber +70°C
Warp8.80 daN
Weft9.30 daN
Elongation up to break
ISO 1421
└Original
Warp6.40 %
Weft7.30 %
└After colour fastness to artificial weathering
Warp6.50 %
Weft7.00 %
└After climatic chamber -30°C
Warp6.20 %
Weft6.90 %
└After climatic chamber +70°C
Warp6.40 %
Weft6.70 %
Breaking strength
ISO 1421
└Original
Warp224.20 daN/5cm
Weft176.60 daN/5cm
└After colour fastness to artificial weathering
Warp214.20 daN/5cm
Weft168.00 daN/5cm
└After climatic chamber -30°C
Warp222.40 daN/5cm
Weft162.60 daN/5cm
└After climatic chamber +70°C
Warp213.90 daN/5cm
Weft161.60 daN/5cm
Front - Interior
Visual properties
Tv = Visual light transmittance
0.00%
Tuv = UV transmittance
0.00%
Solar energetic properties
As = Solar absorptance
89.00%
Rs = Solar reflectance
11.00%
Ts = Solar transmittance
0.00%
Fabric + glazing: G-factor
Glazing A
G 0.59
Te 0.00
Qi 0.59
SC 0.69
Glazing B
G 0.60
Te 0.00
Qi 0.60
SC 0.79
Glazing C
G 0.52
Te 0.00
Qi 0.52
SC 0.88
Glazing D
G 0.29
Te 0.00
Qi 0.29
SC 0.91
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 4
Very good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Interior
Visual properties
Tv = Visual light transmittance
0.00%
Tuv = UV transmittance
0.00%
Solar energetic properties
As = Solar absorptance
66.30%
Rs = Solar reflectance
33.70%
Ts = Solar transmittance
0.00%
Fabric + glazing: G-factor
Glazing A
G 0.47
Te 0.00
Qi 0.47
SC 0.55
Glazing B
G 0.50
Te 0.00
Qi 0.50
SC 0.65
Glazing C
G 0.45
Te 0.00
Qi 0.45
SC 0.76
Glazing D
G 0.27
Te 0.00
Qi 0.27
SC 0.85
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 4
Very good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 1
Little effect
Glazing B
Class 1
Little effect
Glazing C
Class 1
Little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Front - Exterior
Visual properties
Tv = Visual light transmittance
0.00%
Tuv = UV transmittance
0.00%
Solar energetic properties
As = Solar absorptance
89.00%
Rs = Solar reflectance
11.00%
Ts = Solar transmittance
0.00%
Fabric + glazing: G-factor
Glazing A
G 0.13
Te 0.00
Qi 0.13
SC 0.15
Glazing B
G 0.09
Te 0.00
Qi 0.09
SC 0.11
Glazing C
G 0.05
Te 0.00
Qi 0.05
SC 0.08
Glazing D
G 0.04
Te 0.00
Qi 0.04
SC 0.14
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 4
Very good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 3
Good effect
Glazing B
Class 4
Very good effect
Glazing C
Class 4
Very good effect
Glazing D
Class 4
Very good effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 2
Moderate effect
Glazing B
Class 3
Good effect
Glazing C
Class 3
Good effect
Glazing D
Class 3
Good effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Exterior
Visual properties
Tv = Visual light transmittance
0.00%
Tuv = UV transmittance
0.00%
Solar energetic properties
As = Solar absorptance
66.30%
Rs = Solar reflectance
33.70%
Ts = Solar transmittance
0.00%
Fabric + glazing: G-factor
Glazing A
G 0.09
Te 0.00
Qi 0.09
SC 0.11
Glazing B
G 0.07
Te 0.00
Qi 0.07
SC 0.09
Glazing C
G 0.04
Te 0.00
Qi 0.03
SC 0.06
Glazing D
G 0.03
Te 0.00
Qi 0.03
SC 0.10
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 4
Very good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 4
Very good effect
Glazing B
Class 4
Very good effect
Glazing C
Class 4
Very good effect
Glazing D
Class 4
Very good effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 3
Good effect
Glazing B
Class 3
Good effect
Glazing C
Class 3
Good effect
Glazing D
Class 3
Good effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
