Lightweight PVC free fabric
We are delighted to present our new lightweight pvc free fabric.
Lightweight PVC free fabric
Lightweight PVC free fabric
We are delighted to present our new lightweight pvc free fabric.
Innovations
PVC free
Widths
Product ref.
280 cm

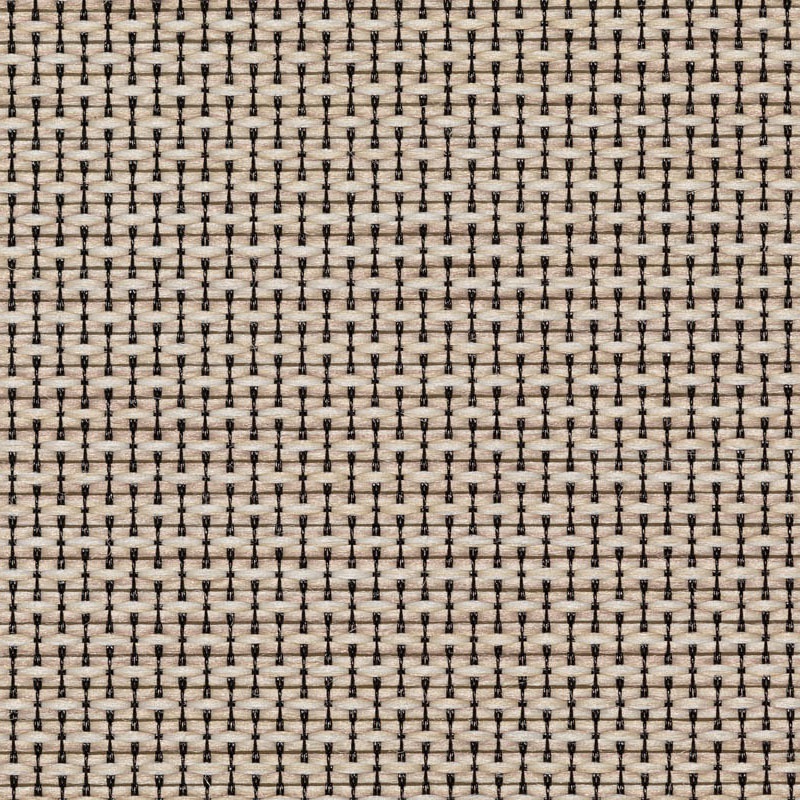

008010 - linen | charcoal
- Available
Certificates
To view the certificates, please login.
Technical info
General
Composition
Polyester 100%
Openness factor
NBN EN 14500-B1
6.00%
Weight
NF EN 12127
160.00 g/m²
Thickness
ISO 2286-3
0.35 mm
Density
ISO 7211/
Warp33.00 yarn/cm
Weft24.00 yarn/cm
Color fastness to artificial light
ISO 105 B02
>6
Roll length
40 m
Cleaning
With soapy water
Fire classification
└Europe
UNE-EN 13501-1:2007
C-s3, d0
└France
NF P92-503
M2
└Germany
DIN 4102
B1
└Spain
UNE EN 13773-2003
Clase 1
Tear strength
ISO 4674-1B
└Original
Warp2.00 daN
Weft0.90 daN
└After climatic chamber -30°C
Warp1.70 daN
Weft0.90 daN
Elongation up to break
ISO 1421
└Original
Warp16.80 %
Weft14.40 %
└After climatic chamber -30°C
Warp18.40 %
Weft14.30 %
└After climatic chamber +70°C
Warp19.30 %
Weft14.60 %
Breaking strength
ISO 1421
└Original
Warp19.70 daN/5cm
Weft87.50 daN/5cm
└After climatic chamber -30°C
Warp21.80 daN/5cm
Weft89.40 daN/5cm
└After climatic chamber +70°C
Warp1.80 daN/5cm
Weft0.80 daN/5cm
└After climatic chamber +70°C
Warp23.30 daN/5cm
Weft86.40 daN/5cm
Front - Interior
Visual properties
Tv = Visual light transmittance
15.80%
Tuv = UV transmittance
9.50%
Solar energetic properties
As = Solar absorptance
44.40%
Rs = Solar reflectance
36.50%
Ts = Solar transmittance
19.10%
Fabric + glazing: G-factor
Glazing A
G 0.49
Te 0.16
Qi 0.33
SC 0.58
Glazing B
G 0.50
Te 0.14
Qi 0.36
SC 0.66
Glazing C
G 0.45
Te 0.10
Qi 0.34
SC 0.76
Glazing D
G 0.27
Te 0.06
Qi 0.22
SC 0.86
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 3
Good effect
Glare control
Class 0
Very little effect
Privacy night
Class 1
Little effect
Visual contact with the outside
Class 3
Good effect
Daylight utilisation
Class 2
Moderate effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 1
Little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 1
Little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Interior
Visual properties
Tv = Visual light transmittance
15.80%
Tuv = UV transmittance
9.50%
Solar energetic properties
As = Solar absorptance
44.70%
Rs = Solar reflectance
36.20%
Ts = Solar transmittance
19.10%
Fabric + glazing: G-factor
Glazing A
G 0.49
Te 0.16
Qi 0.33
SC 0.58
Glazing B
G 0.50
Te 0.14
Qi 0.36
SC 0.66
Glazing C
G 0.45
Te 0.10
Qi 0.34
SC 0.76
Glazing D
G 0.27
Te 0.06
Qi 0.22
SC 0.86
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 3
Good effect
Glare control
Class 0
Very little effect
Privacy night
Class 1
Little effect
Visual contact with the outside
Class 3
Good effect
Daylight utilisation
Class 2
Moderate effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 1
Little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 1
Little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
