Efficient, performant, trendy
With an openness factor of 3%, our Metal screen collection maximizes energy efficiency by preventing the transfer of unwanted heat or chill between your space and the outside world. Metal screens aren’t just performant. They also add a trendy edge to any indoor space.
Efficient, performant, trendy
Efficient, performant, trendy
With an openness factor of 3%, our Metal screen collection maximizes energy efficiency by preventing the transfer of unwanted heat or chill between your space and the outside world. Metal screens aren’t just performant. They also add a trendy edge to any indoor space.
Innovations
Ultra ecological
Reflect sunlight
Openness factor 3%
Widths
Product ref.
240 cm
010010 - black
- Available
Certificates
To view the certificates, please login.
Technical info
General
Composition
100% Recycled PET bottles
Openness factor
NBN EN 410
3.00%
Weight
NF EN 12127
226.00 g/m²
Thickness
ISO 5084
0.46 mm
Density
ISO 7211/2
Warp21.00 yarn/cm
Weft18.00 yarn/cm
Color fastness to artificial light
ISO 105 B02
>7
Roll length
30 m
Cleaning
With soapy water
Confection
By heat or ultrasonic welding with an extra hot glue tape
Fire classification
└Europe
UNE-EN 13501-1:2007
C-s3, d0
└France
NF P92-503
M1
└Italy
UNI 9177
└Germany
DIN 4102
B1
└UK
BS 5867
└USA
NFPA 701
Tear strength
ISO 4674-1 methode 2
└Original
Warp5.20 daN
Weft6.80 daN
└After climatic chamber -30°C
Warp5.00 daN
Weft6.20 daN
└After climatic chamber +70°C
Warp5.20 daN
Weft6.70 daN
Elongation up to break
ISO 1421
└Original
Warp36.00 %
Weft33.50 %
Breaking strength
ISO 1421
└Original
Warp160.00 daN/5cm
Weft135.00 daN/5cm

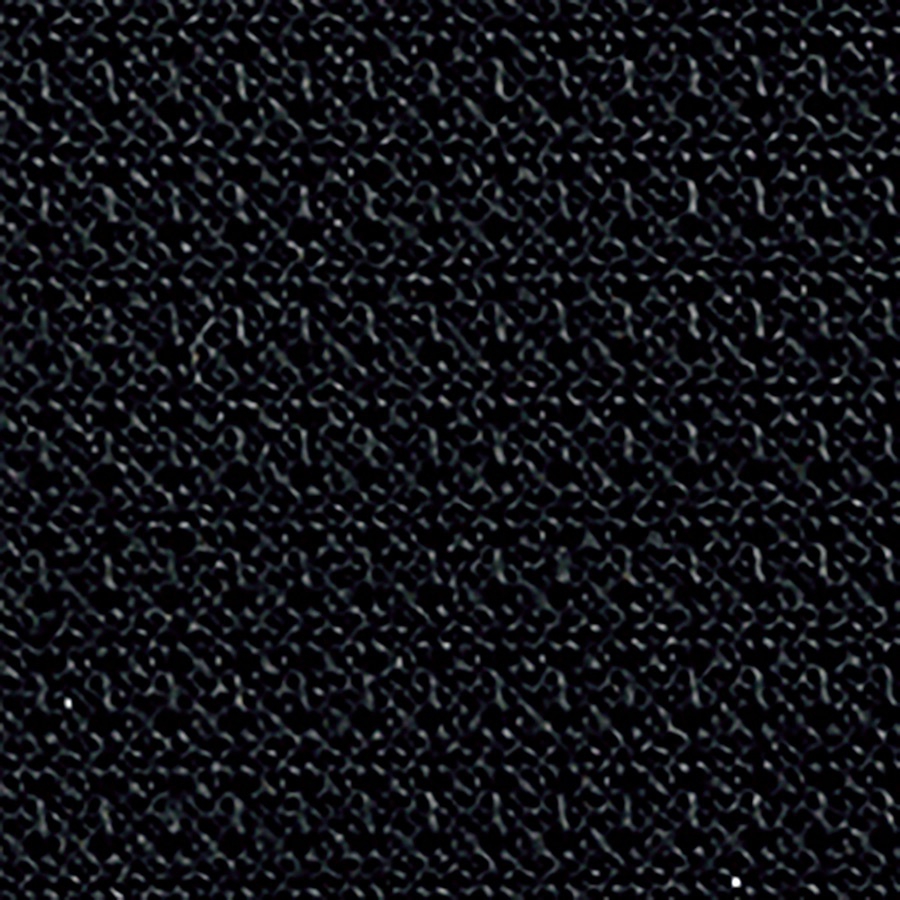

Front - Interior
Visual properties
Tv = Visual light transmittance
2.50%
Tuv = UV transmittance
2.40%
Solar energetic properties
As = Solar absorptance
65.80%
Rs = Solar reflectance
28.70%
Ts = Solar transmittance
5.50%
Fabric + glazing: G-factor
Glazing A
G 0.55
Te 0.00
Qi 0.00
SC 0.65
Glazing B
G 0.55
Te 0.00
Qi 0.00
SC 0.72
Glazing C
G 0.48
Te 0.00
Qi 0.00
SC 0.81
Glazing D
G 0.28
Te 0.00
Qi 0.00
SC 0.88
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 3
Good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 0
Very little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect

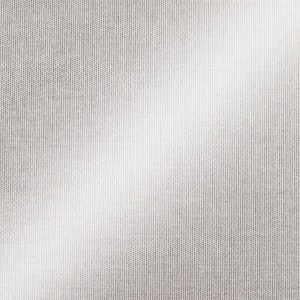

Back - Interior
Visual properties
Tv = Visual light transmittance
2.50%
Tuv = UV transmittance
2.40%
Solar energetic properties
As = Solar absorptance
34.80%
Rs = Solar reflectance
59.70%
Ts = Solar transmittance
5.50%
Fabric + glazing: G-factor
Glazing A
G 0.27
Te 0.00
Qi 0.00
SC 0.32
Glazing B
G 0.33
Te 0.00
Qi 0.00
SC 0.43
Glazing C
G 0.33
Te 0.00
Qi 0.00
SC 0.56
Glazing D
G 0.18
Te 0.00
Qi 0.00
SC 0.56
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 3
Good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 0
Very little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
