Reflects sunlight outdoors
Out is an extremely durable, effective collection of exterior screens - woven with coated fiberglass yarns - making these screens ideal for outdoor use. Copaco offers a wide range of fabric and color options that ensure a perfect fit. Two new lines, made with the innovative Block fabrics, Lunar and Solar, provide perfectly blocking & transparency. Out screens are a decorative feature of countless home and offices around the world, giving energy savings and light transmission a new dimension.
Reflects sunlight outdoors
Reflects sunlight outdoors
Out is an extremely durable, effective collection of exterior screens - woven with coated fiberglass yarns - making these screens ideal for outdoor use. Copaco offers a wide range of fabric and color options that ensure a perfect fit. Two new lines, made with the innovative Block fabrics, Lunar and Solar, provide perfectly blocking & transparency. Out screens are a decorative feature of countless home and offices around the world, giving energy savings and light transmission a new dimension.
Innovations
Non-flammable
Openness factor 5%
Width of 3.5m
Widths
Product ref.
190 cm
220 cm
250 cm
270 cm
320 cm
350 cm

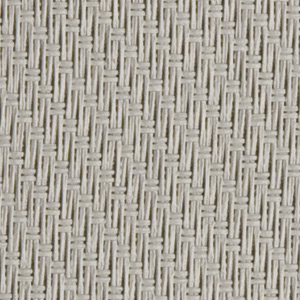

007007 - pearl grey | pearl grey
- Available
Downloads
Certificates
To view the certificates, please login.
Technical info
General
Composition
Fibreglass 42% - PVC 58%
Openness factor
NBN EN 410
5.00%
Weight
NF EN 12127
525.00 g/m²
Thickness
ISO 5084
0.74 mm
Density
ISO 7211/2
Warp18.00 yarn/cm
Weft14.00 yarn/cm
Color fastness to artificial light
ISO 105 B02
>7
Color fastness to artificial weathering
ISO 105 B04
>7
Air permeability
ISO 9237
580.00 l/m²/s
Roll length
50 m / 30 m for all widths > 270 cm
Cleaning
With soapy water
Confection
By heat, high frequency or ultrasonic welding
Fire classification
└Europe
UNE-EN 13501-1:2007
C-s3, d0
└France
NF P92-503
M1
└Italy
UNI 9177
Class 1
└Germany
DIN 4102
B1
└UK
BS 5867
C
└USA
NFPA 701
FR
Tear strength
ISO 4674-1 methode 2
└Original
Warp8.50 daN
Weft7.50 daN
└After climatic chamber -30°C
Warp7.80 daN
Weft7.50 daN
└After climatic chamber +70°C
Warp8.20 daN
Weft7.20 daN
Elongation up to break
ISO 1421
└Original
Warp3.10 %
Weft2.75 %
└After color fastness to artificial light
Warp4.00 %
Weft2.90 %
└After colour fastness to artificial weathering
Warp3.50 %
Weft2.80 %
└After climatic chamber -30°C
Warp3.00 %
Weft2.50 %
└After climatic chamber +70°C
Warp2.85 %
Weft2.50 %
Breaking strength
ISO 1421
└Original
Warp260.00 daN/5cm
Weft225.00 daN/5cm
└After color fastness to artificial light
Warp240.00 daN/5cm
Weft220.00 daN/5cm
└After colour fastness to artificial weathering
Warp240.00 daN/5cm
Weft225.00 daN/5cm
└After climatic chamber -30°C
Warp225.00 daN/5cm
Weft200.00 daN/5cm
└After climatic chamber +70°C
Warp180.00 daN/5cm
Weft185.00 daN/5cm
Front - Interior
Visual properties
Tv = Visual light transmittance
8.40%
Tuv = UV transmittance
6.00%
Solar energetic properties
As = Solar absorptance
51.70%
Rs = Solar reflectance
38.30%
Ts = Solar transmittance
10.10%
Fabric + glazing: G-factor
Glazing A
G 0.50
Te 0.09
Qi 0.42
SC 0.59
Glazing B
G 0.50
Te 0.07
Qi 0.43
SC 0.66
Glazing C
G 0.44
Te 0.06
Qi 0.39
SC 0.75
Glazing D
G 0.27
Te 0.03
Qi 0.24
SC 0.86
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 3
Good effect
Glare control
Class 1
Little effect
Privacy night
Class 1
Little effect
Visual contact with the outside
Class 3
Good effect
Daylight utilisation
Class 1
Little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 1
Little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Interior
Visual properties
Tv = Visual light transmittance
8.40%
Tuv = UV transmittance
6.00%
Solar energetic properties
As = Solar absorptance
50.50%
Rs = Solar reflectance
39.40%
Ts = Solar transmittance
10.10%
Fabric + glazing: G-factor
Glazing A
G 0.50
Te 0.09
Qi 0.41
SC 0.58
Glazing B
G 0.50
Te 0.07
Qi 0.42
SC 0.66
Glazing C
G 0.44
Te 0.06
Qi 0.39
SC 0.75
Glazing D
G 0.27
Te 0.03
Qi 0.24
SC 0.86
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 3
Good effect
Glare control
Class 1
Little effect
Privacy night
Class 1
Little effect
Visual contact with the outside
Class 3
Good effect
Daylight utilisation
Class 1
Little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 1
Little effect
Glazing B
Class 1
Little effect
Glazing C
Class 1
Little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Front - Exterior
Visual properties
Tv = Visual light transmittance
8.40%
Tuv = UV transmittance
6.00%
Solar energetic properties
As = Solar absorptance
51.70%
Rs = Solar reflectance
38.30%
Ts = Solar transmittance
10.10%
Fabric + glazing: G-factor
Glazing A
G 0.20
Te 0.09
Qi 0.11
SC 0.24
Glazing B
G 0.16
Te 0.07
Qi 0.09
SC 0.22
Glazing C
G 0.11
Te 0.06
Qi 0.06
SC 0.19
Glazing D
G 0.09
Te 0.03
Qi 0.06
SC 0.24
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 2
Moderate effect
Glazing B
Class 2
Moderate effect
Glazing C
Class 3
Good effect
Glazing D
Class 4
Very good effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 2
Moderate effect
Glazing B
Class 3
Good effect
Glazing C
Class 3
Good effect
Glazing D
Class 3
Good effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Exterior
Visual properties
Tv = Visual light transmittance
8.40%
Tuv = UV transmittance
6.00%
Solar energetic properties
As = Solar absorptance
50.50%
Rs = Solar reflectance
39.40%
Ts = Solar transmittance
10.10%
Fabric + glazing: G-factor
Glazing A
G 0.20
Te 0.09
Qi 0.11
SC 0.23
Glazing B
G 0.16
Te 0.07
Qi 0.09
SC 0.21
Glazing C
G 0.11
Te 0.06
Qi 0.06
SC 0.19
Glazing D
G 0.09
Te 0.03
Qi 0.05
SC 0.27
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 2
Moderate effect
Glazing B
Class 2
Moderate effect
Glazing C
Class 3
Good effect
Glazing D
Class 4
Very good effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 2
Moderate effect
Glazing B
Class 3
Good effect
Glazing C
Class 3
Good effect
Glazing D
Class 3
Good effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
