Reflects sunlight outdoors
Out is an extremely durable, effective collection of exterior screens - woven with coated fiberglass yarns - making these screens ideal for outdoor use. Copaco offers a wide range of fabric and color options that ensure a perfect fit. Two new lines, made with the innovative Block fabrics, Lunar and Solar, provide perfectly blocking & transparency. Out screens are a decorative feature of countless home and offices around the world, giving energy savings and light transmission a new dimension.
Reflects sunlight outdoors
Reflects sunlight outdoors
Out is an extremely durable, effective collection of exterior screens - woven with coated fiberglass yarns - making these screens ideal for outdoor use. Copaco offers a wide range of fabric and color options that ensure a perfect fit. Two new lines, made with the innovative Block fabrics, Lunar and Solar, provide perfectly blocking & transparency. Out screens are a decorative feature of countless home and offices around the world, giving energy savings and light transmission a new dimension.
Innovations
Openness factor 1%
Widths
Product ref.
270 cm
190 cm

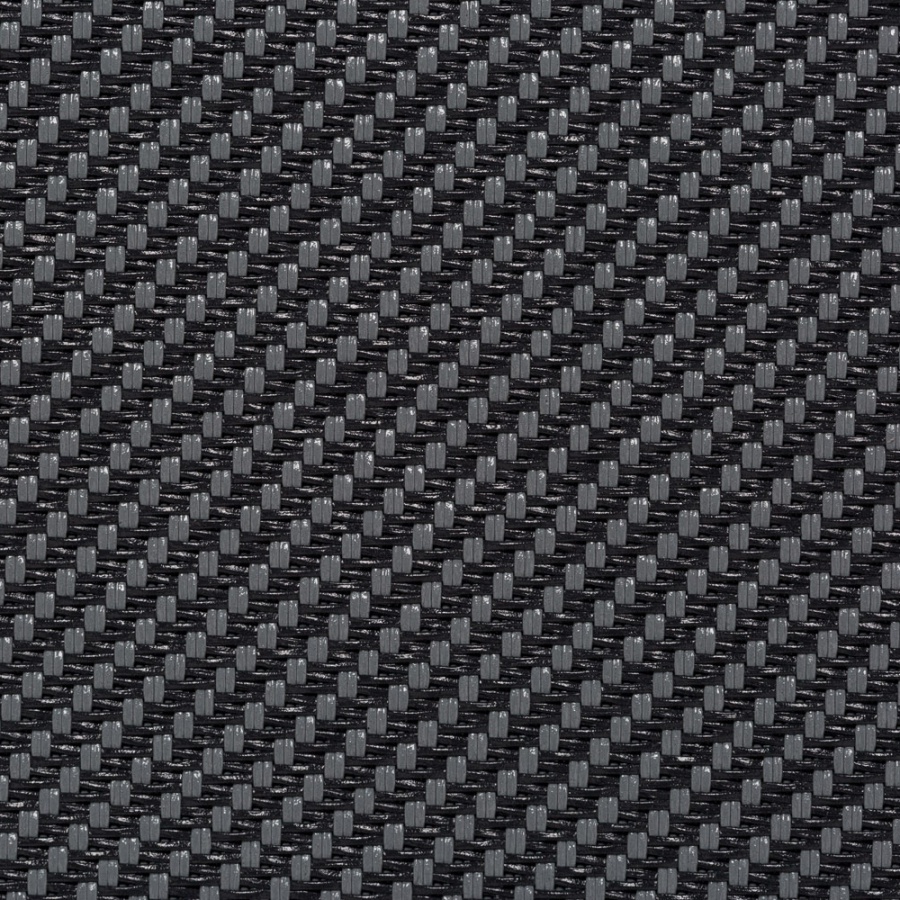

001010 - grey | charcoal
- Available
Downloads
Certificates
To view the certificates, please login.
Technical info
General
Composition
Glassfibre 42% - PVC 58%
Openness factor
NBN EN 410
1.00%
Weight
NF EN 12127
620.00 g/m²
Thickness
ISO 5084
0.80 mm
Density
ISO 7211/2
Warp20.00 yarn/cm
Weft18.00 yarn/cm
Color fastness to artificial light
ISO 105 B02
>7
Color fastness to artificial weathering
ISO 105 B04
>7
Air permeability
ISO 9237
497.00l/m²/s
Roll length
30 m
Cleaning
With soapy water
Confection
By heat, high frequency or ultrasonic welding
Fire classification
└Europe
UNE-EN 13501-1:2007
C-s3, d0
└France
NF P92-503
M1
└Italy
UNI 9177
Class 1
└Germany
DIN 4102
B1
└UK
BS 5867
C
└USA
NFPA 701
FR
Tear strength
ISO 4674-1 methode 2
└Original
Warp5.90 daN
Weft6.20 daN
└After climatic chamber -30°C
Warp6.00 daN
Weft6.20 daN
└After climatic chamber +70°C
Warp5.30 daN
Weft5.80 daN
Elongation up to break
ISO 1421
└Original
Warp4.70 %
Weft3.80 %
└After colour fastness to artificial weathering
Warp4.70 %
Weft3.30 %
└After climatic chamber -30°C
Warp4.80 %
Weft3.90 %
└After climatic chamber +70°C
Warp5.00 %
Weft3.70 %
Breaking strength
ISO 1421
└Original
Warp321.00 daN/5cm
Weft277.00 daN/5cm
└After colour fastness to artificial weathering
Warp225.00 daN/5cm
Weft216.00 daN/5cm
└After climatic chamber -30°C
Warp236.00 daN/5cm
Weft279.00 daN/5cm
└After climatic chamber +70°C
Warp251.00 daN/5cm
Weft266.00 daN/5cm
Front - Interior
Visual properties
Tv = Visual light transmittance
1.20%
Tuv = UV transmittance
1.20%
Solar energetic properties
As = Solar absorptance
88.30%
Rs = Solar reflectance
10.50%
Ts = Solar transmittance
1.20%
Fabric + glazing: G-factor
Glazing A
G 0.65
Te 0.01
Qi 0.64
SC 0.77
Glazing B
G 0.64
Te 0.01
Qi 0.63
SC 0.84
Glazing C
G 0.53
Te 0.01
Qi 0.53
SC 0.90
Glazing D
G 0.30
Te 0.00
Qi 0.30
SC 0.94
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 3
Good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Interior
Visual properties
Tv = Visual light transmittance
1.20%
Tuv = UV transmittance
1.20%
Solar energetic properties
As = Solar absorptance
84.80%
Rs = Solar reflectance
14.00%
Ts = Solar transmittance
1.20%
Fabric + glazing: G-factor
Glazing A
G 0.65
Te 0.01
Qi 0.64
SC 0.77
Glazing B
G 0.64
Te 0.01
Qi 0.63
SC 0.84
Glazing C
G 0.53
Te 0.01
Qi 0.53
SC 0.90
Glazing D
G 0.30
Te 0.00
Qi 0.30
SC 0.94
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 3
Good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Front - Exterior
Visual properties
Tv = Visual light transmittance
1.20%
Tuv = UV transmittance
1.20%
Solar energetic properties
As = Solar absorptance
88.30%
Rs = Solar reflectance
10.50%
Ts = Solar transmittance
1.20%
Fabric + glazing: G-factor
Glazing A
G 0.20
Te 0.01
Qi 0.19
SC 0.23
Glazing B
G 0.15
Te 0.01
Qi 0.14
SC 0.19
Glazing C
G 0.09
Te 0.01
Qi 0.08
SC 0.15
Glazing D
G 0.08
Te 0.00
Qi 0.07
SC 0.24
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 3
Good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 2
Moderate effect
Glazing B
Class 3
Good effect
Glazing C
Class 4
Very good effect
Glazing D
Class 4
Very good effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 2
Moderate effect
Glazing B
Class 2
Moderate effect
Glazing C
Class 3
Good effect
Glazing D
Class 3
Good effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Exterior
Visual properties
Tv = Visual light transmittance
1.20%
Tuv = UV transmittance
1.20%
Solar energetic properties
As = Solar absorptance
84.80%
Rs = Solar reflectance
14.00%
Ts = Solar transmittance
1.20%
Fabric + glazing: G-factor
Glazing A
G 0.20
Te 0.01
Qi 0.19
SC 0.23
Glazing B
G 0.15
Te 0.01
Qi 0.14
SC 0.19
Glazing C
G 0.09
Te 0.01
Qi 0.08
SC 0.15
Glazing D
G 0.08
Te 0.00
Qi 0.07
SC 0.24
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 3
Good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 2
Moderate effect
Glazing B
Class 3
Good effect
Glazing C
Class 4
Very good effect
Glazing D
Class 4
Very good effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 2
Moderate effect
Glazing B
Class 2
Moderate effect
Glazing C
Class 3
Good effect
Glazing D
Class 3
Good effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
