Insect-free sun protection
The Block-range is Copaco’s solution for those who want to keep out sunlight or insects completely. But in the meanwhile want to maintain the ambiance of their space. Ae you going for a sober or flashy? Translucent or opaque? Strike a perfect balance between comfortable, stylish, private or insect-free by choosing from the Block collection’s wide and innovative range.
Insect-free sun protection
Insect-free sun protection
The Block-range is Copaco’s solution for those who want to keep out sunlight or insects completely. But in the meanwhile want to maintain the ambiance of their space. Ae you going for a sober or flashy? Translucent or opaque? Strike a perfect balance between comfortable, stylish, private or insect-free by choosing from the Block collection’s wide and innovative range.
Innovations
Reflect sunlight
Openness factor 0%
Widths
Product ref.
260 cm

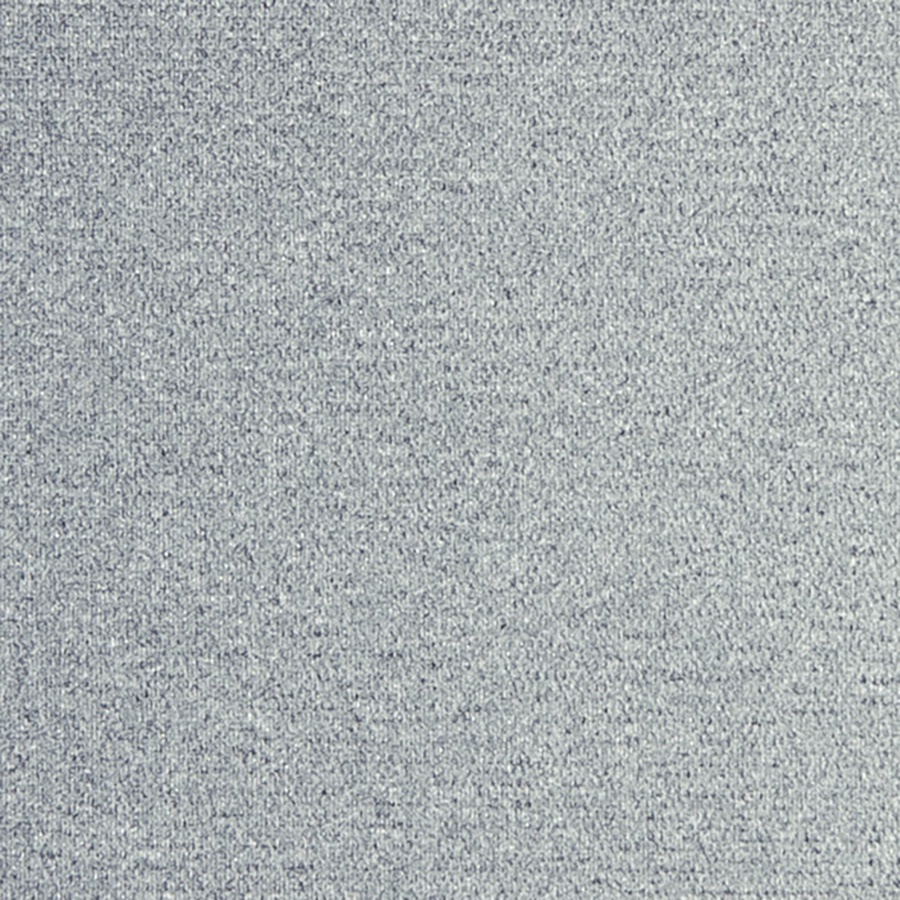

007007 - pearl grey
- Available
Technical info
General
Composition
Polyester 66% - PUR 34%
Openness factor
NBN EN 410
0.00%
Weight
NF EN 12127
310.00 g/m²
Thickness
ISO 5084
0.25 mm
Color fastness to artificial light
ISO 105 B02
front 6, back >7
Roll length
30 m
Fire classification
└Europe
UNE-EN 13501-1:2007
B-s2,d0
└Germany
DIN 4102
B2
└Spain
UNE 13773
Clase 1
Tear strength
ISO 4674-1 method 2
└Original
Warp1.65 daN
Weft3.10 daN
└After climatic chamber -30°C
Warp1.50 daN
Weft2.90 daN
└After climatic chamber +70°C
Warp1.65 daN
Weft3.20 daN
Elongation up to break
ISO 1421
└Original
Warp25.60 %
Weft30.00 %
└After color fastness to artificial light
Warp23.50 %
Weft30.00 %
└After climatic chamber -30°C
Warp29.50 %
Weft33.00 %
└After climatic chamber +70°C
Warp28.00 %
Weft28.50 %
Breaking strength
ISO 1421
└Original
Warp125.00 daN/5cm
Weft165.00 daN/5cm
└After color fastness to artificial light
Warp120.00 daN/5cm
Weft160.00 daN/5cm
└After climatic chamber -30°C
Warp135.00 daN/5cm
Weft170.00 daN/5cm
└After climatic chamber +70°C
Warp130.00 daN/5cm
Weft160.00 daN/5cm
Front - Interior
Visual properties
Tv = Visual light transmittance
0.00%
Tuv = UV transmittance
0.00%
Solar energetic properties
As = Solar absorptance
55.50%
Rs = Solar reflectance
44.50%
Ts = Solar transmittance
0.00%
Fabric + glazing: G-factor
Glazing A
G 0.45
Te 0.00
Qi 0.45
SC 0.53
Glazing B
G 0.47
Te 0.00
Qi 0.47
SC 0.61
Glazing C
G 0.42
Te 0.00
Qi 0.42
SC 0.72
Glazing D
G 0.27
Te 0.00
Qi 0.27
SC 0.84
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 4
Very good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 1
Little effect
Glazing B
Class 1
Little effect
Glazing C
Class 1
Little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
Back - Interior
Visual properties
Tv = Visual light transmittance
0.00%
Tuv = UV transmittance
0.00%
Solar energetic properties
As = Solar absorptance
49.60%
Rs = Solar reflectance
50.40%
Ts = Solar transmittance
0.00%
Fabric + glazing: G-factor
Glazing A
G 0.42
Te 0.00
Qi 0.42
SC 0.49
Glazing B
G 0.44
Te 0.00
Qi 0.44
SC 0.57
Glazing C
G 0.40
Te 0.00
Qi 0.40
SC 0.68
Glazing D
G 0.26
Te 0.00
Qi 0.26
SC 0.82
- G = Total solar energy transmittance
- Te = Direct solar transmittance
- Qi = Secondary heat transfer factor
- SC = Shading coefficient
Visual comfort
Normal solar transmittance
Class 4
Very good effect
Glare control
Class 4
Very good effect
Privacy night
Class 2
Moderate effect
Visual contact with the outside
Class 2
Moderate effect
Daylight utilisation
Class 0
Very little effect
Thermal comfort G-factor = Total solar energy transmittance
Glazing A
Class 1
Little effect
Glazing B
Class 1
Little effect
Glazing C
Class 1
Little effect
Glazing D
Class 2
Moderate effect
Thermal comfort Qi-factor = Secondary heat transfer factor
Glazing A
Class 0
Very little effect
Glazing B
Class 0
Very little effect
Glazing C
Class 0
Very little effect
Glazing D
Class 1
Little effect
- Class 0 = Very little effect
- Class 1 = Little effect
- Class 2 = Moderate effect
- Class 3 = Good effect
- Class 4 = Very good effect
